Spiral Corrugated Pipe - Zinc & Polymer Coated

Spiral corrugated pipes, as the best combination of strength and hydraulic efficiency, feature helical pattern and lock-seam construction in round shapes from 12" to 14" in diameter. They are manufactured from quality galvanized corrugated sheet using advanced German manufacturing technology. Meanwhile, spiral corrugated pipes can be connected by coupling systems or flange plates according to the project requirements.

Highlight:

Two galvanized spiral corrugated steel pipes with standard re-corrugated standard ends.

Lightweight - About 1/10 to 1/15 time the weight of traditional concrete pipe in same diameter and length.
Easy to transport - Spiral corrugated pipes can be manual carried on narrow construction sites that large handling equipment cannot get in.
Fast installation - Spiral corrugated pipes can be assembled at any length based on the construction requirements when installing. Meanwhile, it is possible to disassemble the pipe and remove it to other places when necessary.
Superb corrosion resistance - Heavy zinc coating no less than 600g/m2 on both inside and outside of the pipe allows for great rust and corrosion resistance.
High applicability - Low requirements for foundation bearing capacity and ground planeness, thus, our pipes still perform well in areas lacking dinas or with low foundation bearing capacity.
Various specifications - A wide range of wall thicknesses, pipe diameters and corrugation wave sizes are available to meet specific construction requirements. Meanwhile, four end types are available as shown in the following pictures:

A plan about four types of spiral corrugated pipe ends.
Four end types of spiral corrugated pipes

Applications:

  • Drain system.
  • Culverts.
  • Small bridges.
  • Storm water detention.
  • Gas pipeline protection tube.
  • Underground cable protection.
  • Underpasses.
  • Passages for wildlife.
  • Coalmine vent pipes.
  • Well casing pipes.
  • Cisterns.
  • Agricultural irrigation.
  • Municipal engineering.
  • Storm sewer, etc.

Details:

  • Pipe inside diameter: 0.3m to 3.6m.
  • Pipe thickness: 18 gauge to 8 gauge.
  • Wave size:
    • 68mm × 13mm (2-2/3" × 1/2");
    • 75mm × 25mm (3" × ");
    • 125mm × 25mm (5" × 1").
  • Anti-corrosion treatment:
    • Galvanized - thickness of zinc coating ≥ 84um.
    • Electrostatic asphalt spraying.
    • Polymer coated for the longest service life.
  • Height of back-fill cover: 0.5m to 76m
  • Pipe length: Any custom length is available.

Specifications:

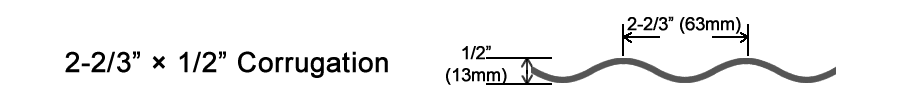

A plan about A corrugation in pitch of 2-2/3" and in depth of 1/2".
Code Inside diameter (inches) Wall thickness (gauge)   Code Inside diameter (inches) Wall thickness (gauge)
SCMP-A12 12 18, 16, 14 SCMP-A54 54 16, 14, 12, 10
SCMP-A15 15 18, 16, 14 SCMP-A60 60 14, 12, 10
SCMP-A18 18 18, 16, 14, 12 SCMP-A66 66 12, 10
SCMP-A21 21 18, 16, 14, 12 SCMP-A72 72 12, 10, 8
SCMP-A24 24 18, 16, 14, 12 SCMP-A78 78 12, 10, 8
SCMP-A30 30 18, 16, 14, 12 SCMP-A84 84 12, 10, 8
SCMP-A36 36 18, 16, 14, 12, 10 SCMP-A90 90 12, 10, 8
SCMP-A42 42 18, 16, 14, 12, 10 SCMP-A96 96 10, 8
SCMP-A48 48 18, 16, 14, 12, 10 - - -

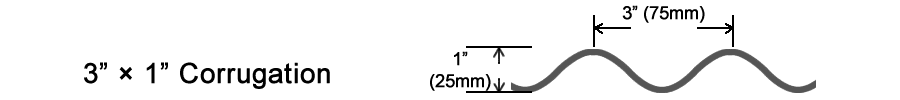

A plan about B corrugation in pitch of 3" and in depth of 1".
Code Inside diameter (inches) Wall thickness (gauge)   Code Inside diameter (inches) Wall thickness (gauge)
SCMP-B36 36 16, 14, 12 SCMP-B90 90 16, 14, 12, 10, 8
SCMP-B42 42 16, 14, 12 SCMP-B96 96 16, 14, 12, 10, 8
SCMP-B48 48 16, 14, 12 SCMP-B102 102 16, 14, 12, 10, 8
SCMP-B54 54 16, 14, 12 SCMP-B108 108 16, 14, 12, 10, 8
SCMP-B60 60 16, 14, 12 SCMP-B114 114 16, 14, 12, 10, 8
SCMP-B66 66 16, 14, 12 SCMP-B120 120 16, 14, 12, 10, 8
SCMP-B72 72 16, 14, 12, 10, 8 SCMP-B126 126 14, 12, 10, 8
SCMP-B78 78 16, 14, 12, 10, 8 SCMP-B132 132 14, 12, 10, 8
SCMP-B84 84 16, 14, 12, 10, 8 SCMP-B138 138 14, 12, 10, 8

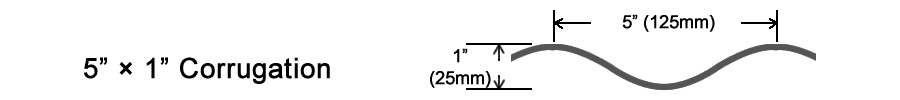

A plan about corrugation in pitch of 5" and in depth of 1".
Code Inside diameter (inches) Wall thickness (gauge)   Code Inside diameter (inches) Wall thickness (gauge)
SCMP-C36 36 16, 14, 12 SCMP-C96 96 16, 14, 12, 10, 8
SCMP-C42 42 16, 14, 12 SCMP-C102 102 16, 14, 12, 10, 8
SCMP-C48 48 16, 14, 12 SCMP-C108 108 16, 14, 12, 10, 8
SCMP-C54 54 16, 14, 12 SCMP-C114 114 16, 14, 12, 10, 8
SCMP-C60 60 16, 14, 12 SCMP-C120 120 16, 14, 12, 10, 8
SCMP-C66 66 16, 14, 12 SCMP-C126 126 14, 12, 10, 8
SCMP-C72 72 16, 14, 12, 10, 8 SCMP-C132 132 14, 12, 10, 8
SCMP-C78 78 16, 14, 12, 10, 8 SCMP-C138 138 14, 12, 10, 8
SCMP-C84 84 16, 14, 12, 10, 8 SCMP-C144 144 12, 10, 8
SCMP-C90 90 16, 14, 12, 10, 8 - - -

Note:

  • 18 gauge: 0.052";
  • 16 gauge: 0.064";
  • 14 gauge: 0.079";
  • 12 gauge: 0.109";
  • 10 gauge: 0.138";
  • 8 gauge: 0.168".
