Joints and Fittings for Connecting Adjacent Pipes

Pipe joints

Pipe joints, also known as pipe couplers, are designed for coupling adjacent ends together tightly. Normally, pipe joints can be classified into two types - soil tight couplers and water tight coupler according to the places where they are located.

A galvanized one-piece pipe joint in annular corrugated style.
Galvanized pipe joints for connecting pipe ends together firmly.
  • Soil tight coupler, as its name implies, is designed to prevent surrounding backfill material from infiltrating into the pipe, especially those fine, granular backfill material like sands. In addition, if the flow of water rises and falls quickly, water may exude from the pipe, mix with surrounding backfill material and infiltrated back into the pipe carrying fine backfill particles. Therefore, a soil tight coupler is a must when corrugated pipes are buried with fine material or flow increase and decrease quickly.
  • If corrugated pipes are installed below the groundwater table, or these pipes are used to carry toxic pollutants, water tight couplers are necessary to prevent liquid from infiltration and seepage.

Various types of pipe joints are available including semi-corrugated, annular corrugated, flat type, hat type and universal type as shown in the following pictures. All of the pipe joints are galvanized for excellent rust and corrosion resistance.

Cross sections of eight types of pipe joints - one, two or three-piece structure
Various types of pipe joints.

Pipe fittings

Pipe fittings refer to galvanized steel pipe connectors designed to keep corrugated pipes in an angle. In our company, pipe fittings are available in elbow, 45° wye, 45° lateral, tee and cross types as shown in the picture:

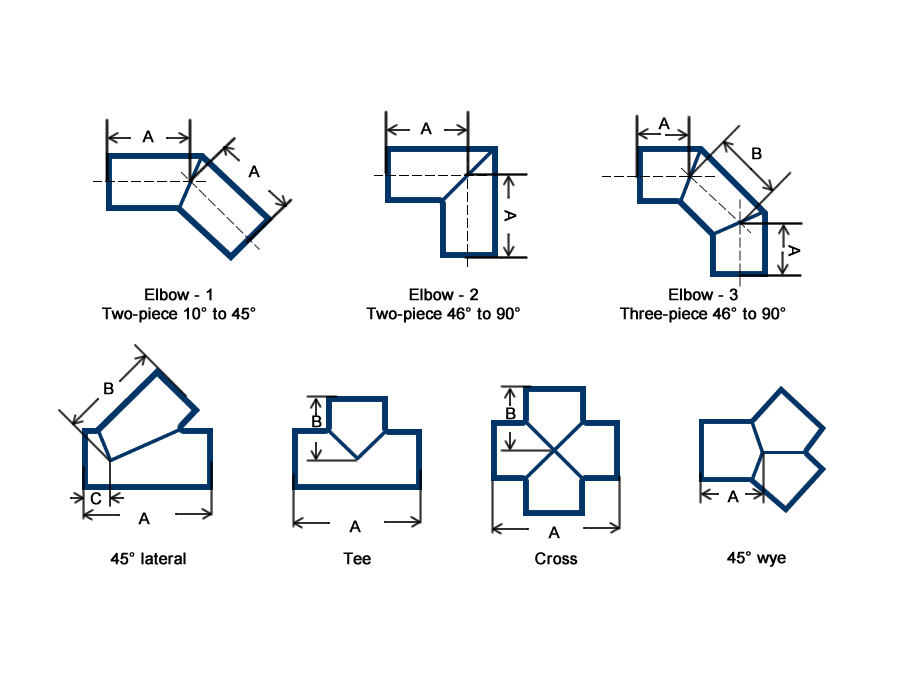

A plan about seven types of pipe fittings
Various types of pipe fittings.

Specification:

Specification of Elbow - 1
Diameter 150mm to 600mm 700mm to 1400mm 1600mm to 2400mm
A 300mm 600mm 900mm
Specification of Elbow - 2
Diameter 150mm to 250mm 300mm to 800mm 900mm to 1200mm 1400mm to 1600mm 1800mm to 2400mm
A 300mm 600mm 900mm 1200mm 1500mm
Specification of Elbow - 3
Diameter A B   Diameter A B
150mm 200mm 200mm 900mm 600mm 600mm
200mm 185mm 230mm 1000mm 610mm 580mm
250mm 175mm 250mm 1200mm 570mm 660mm
300mm 460mm 280mm 1400mm 750mm 900mm
400mm 450mm 300mm 1600mm 780mm 840mm
500mm 425mm 350mm 1800mm 750mm 900mm
600mm 410mm 380mm   2000mm 1000mm 1000mm
700mm 400mm 400mm 2200mm 950mm 1100mm
800mm 360mm 480mm 2400mm 925mm 1150mm
Specification of 45° Lateral Fitting
Diameter A B C   Diameter A B C
150 900mm 600mm 300mm 900 2400mm 1500mm 660mm
200 900mm 600mm 300mm 1000 2400mm 1500mm 760mm
250 900mm 600mm 300mm 1200 3000mm 1800mm 810mm
300 1200mm 600mm 400mm 1400 3600mm 2100mm 1100mm
400 1200mm 900mm 400mm 1600 3600mm 2400mm 1200mm
500 1500mm 900mm 450mm 1800 4200mm 2700mm 1250mm
600 1500mm 900mm 500mm 2000 4800mm 3000mm 1400mm
700 1800mm 1200mm 600mm 2200 4800mm 3300mm 1500mm
800 2400mm 1500mm 660mm 2400 4800mm 3300mm 1550mm
Specification of Tee Fitting
Diameter A B   Diameter A B
150mm 600mm 300mm 900mm 1800mm 900mm
200mm 600mm 300mm 1000mm 1800mm 900mm
250mm 600mm 300mm 1200mm 1800mm 900mm
300mm 800mm 400mm 1400mm 2400mm 1200mm
400mm 1200mm 600mm 1600mm 2400mm 1200mm
500mm 1200mm 600mm 1800mm 3000mm 1500mm
600mm 1200mm 600mm 2000mm 3000mm 1500mm
700mm 1200mm 600mm 2200mm 3000mm 1800mm
800mm 1800mm 900mm 2400mm 3000mm 1800mm
Specification of Cross Fitting
Diameter A B   Diameter A B
150mm 600mm 300mm 900mm 1800mm 900mm
200mm 600mm 300mm 1000mm 1800mm 900mm
250mm 600mm 300mm 1200mm 1800mm 900mm
300mm 1200mm 600mm 1400mm 2400mm 1200mm
400mm 1200mm 600mm 1600mm 2400mm 1200mm
500mm 1200mm 600mm 1800mm 3000mm 1500mm
600mm 1200mm 600mm 2000mm 3000mm 1500mm
700mm 1200mm 600mm 2200mm 3000mm 1500mm
800mm 1800mm 900mm 2400mm 3000mm 1800mm
Specification of 45° Wye fitting
Diameter A   Diameter A
150mm 300mm 900mm 900mm
200mm 300mm 1000mm 900mm
250mm 300mm 1200mm 900mm
300mm 600mm 1400mm 1200mm
400mm 600mm 1600mm 1200mm
500mm 600mm 1800mm 1500mm
600mm 600mm 2000mm 1500mm
700mm 600mm 2200mm 1500mm
800mm 900mm 2400mm 1800mm
A galvanized 45° lateral fitting is lifted up by a hoisting machine
Corrugated pipe fittings are generally used for storm sewer projects.
